CONCRETE BATCHING PLANT
60 MODEL
Unit Specification :
- Max. theoretical productivity : 60 m³/h
- Mixer model : SICOMA MAO1500/1000
- Aggregate hopper : 8 m³ x 4 sets
- Cement silo : 100 Ton x 2 sets
- Total power : 110 kW
TRAILER CONCRETE PUMP
AIMIX ABT30C
Unit Specification :
- Max. theoretical output : 30 m³/h
- Max. pumping pressure : 6 MPa
- Ver/Hor range : 30/100 m
- Engine model : YUCHAI
- Engine power : 52 kW
- Aggregate size : 20 mm

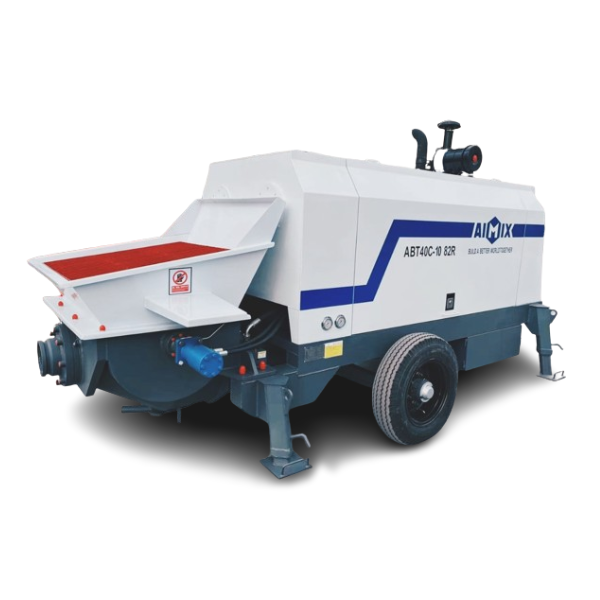

AIMIX ABT40C
Unit Specification :
- Max. theoretical output : 40/26 m³/h
- Max. pumping pressure : 10/7.6 MPa
- Ver/Hor range : 50/200 m
- Engine model : WEICHAI
- Engine power : 82 kW
- Aggregate size : 30 mm

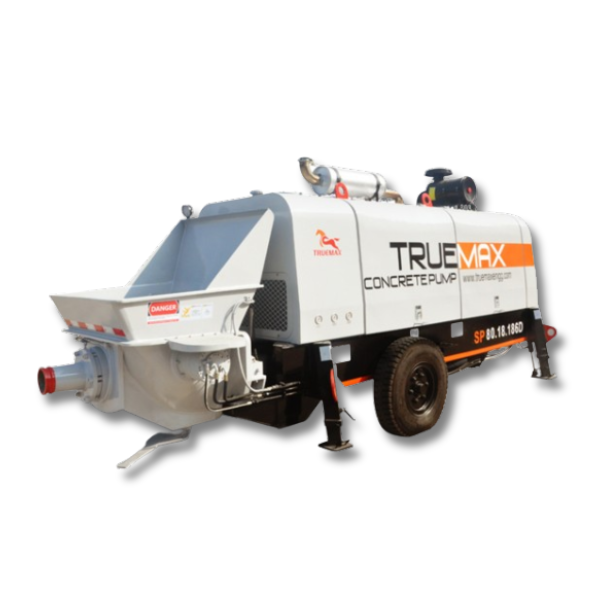

TRUEMAX SP50.10.60D
Unit Specification :
- Max. theoretical output : 50 m³/h
- Max. pumping pressure : 10/5 MPa
- Ver/Hor range : 60/300 m
- Engine model : CUMMINS
- Engine power : 60 kW
- Aggregate size : 40 mm

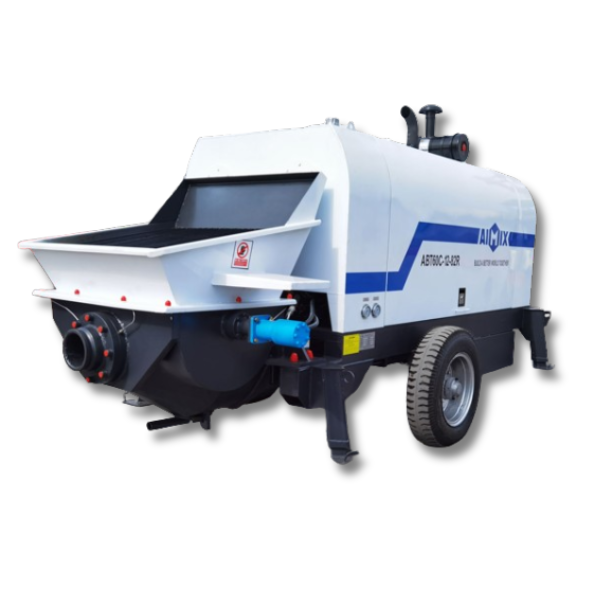

AIMIX ABT60C
Unit Specification :
- Max. theoretical output : 60/36 m³/h
- Max. pumping pressure : 12/7 MPa
- Ver/Hor range : 75/400 m
- Engine model : CUMMINS
- Engine power : 132 kW
- Aggregate size : 40 mm

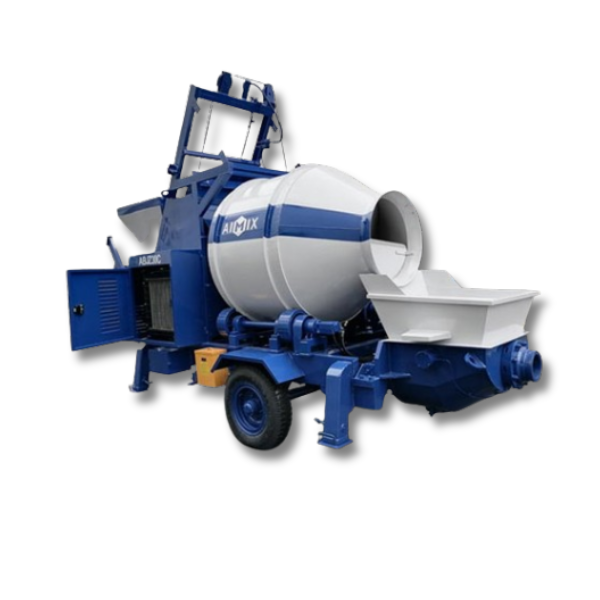

MIXER CONCRETE PUMP

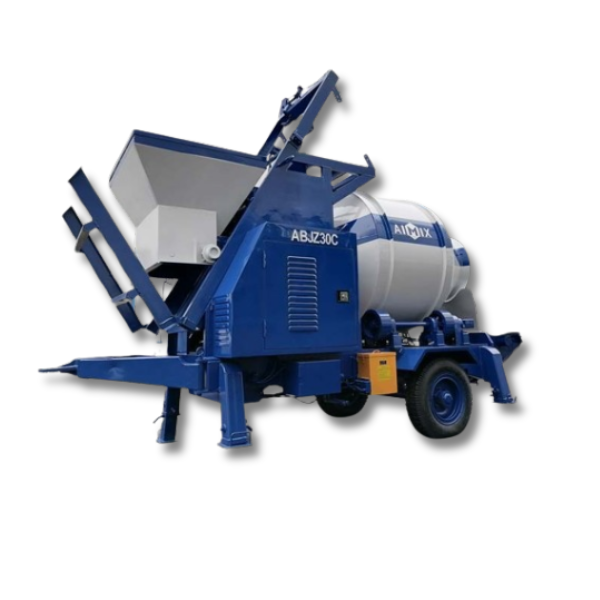

AIMIX ABJZ30C
Unit Specification :
- Max. theoretical output : 30 m³/h
- Mixer feed capacity : 0.56 m³
- Mixer discharge capacity : 0.45 m³
- Max. pumping pressure : 10 MPa
- Ver/Hor range : 30/100 m
- Engine model : YUCHAI
- Engine power : 52 kW
- Aggregate size : 20 mm
AIMIX ABJZ40C
Unit Specification :
- Max. theoretical output : 40 m³/h
- Mixer feed capacity : 0.56 m³
- Mixer discharge capacity : 0.45 m³
- Max. pumping pressure : 10 MPa
- Ver/Hor range : 50/200 m
- Engine model : WEICHAI
- Engine power : 82 kW
- Aggregate size : 30 mm
SELF-LOADING MIXER TRUCK

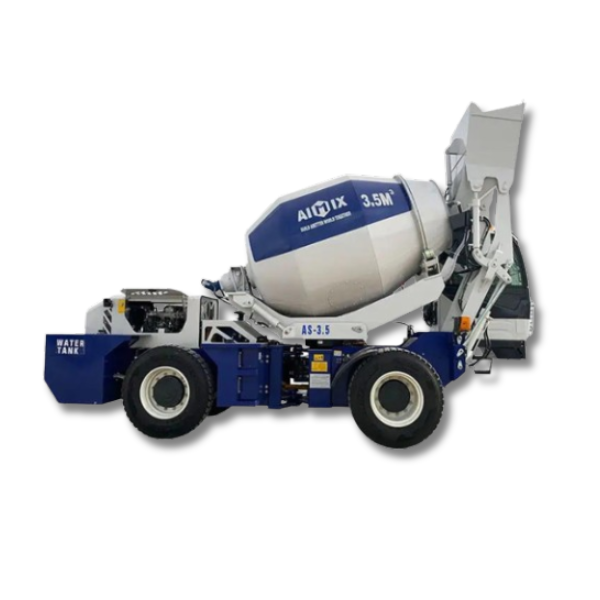

AIMIX AS-3.5
Unit Specification :
- Mixer drum capacity : 3.5 m³
- Engine model : YUCHAI
- Engine power : 91 kW
- Fuel tank : 75 L
- Max. speed : 30 km/h
- Weighing system : Included
